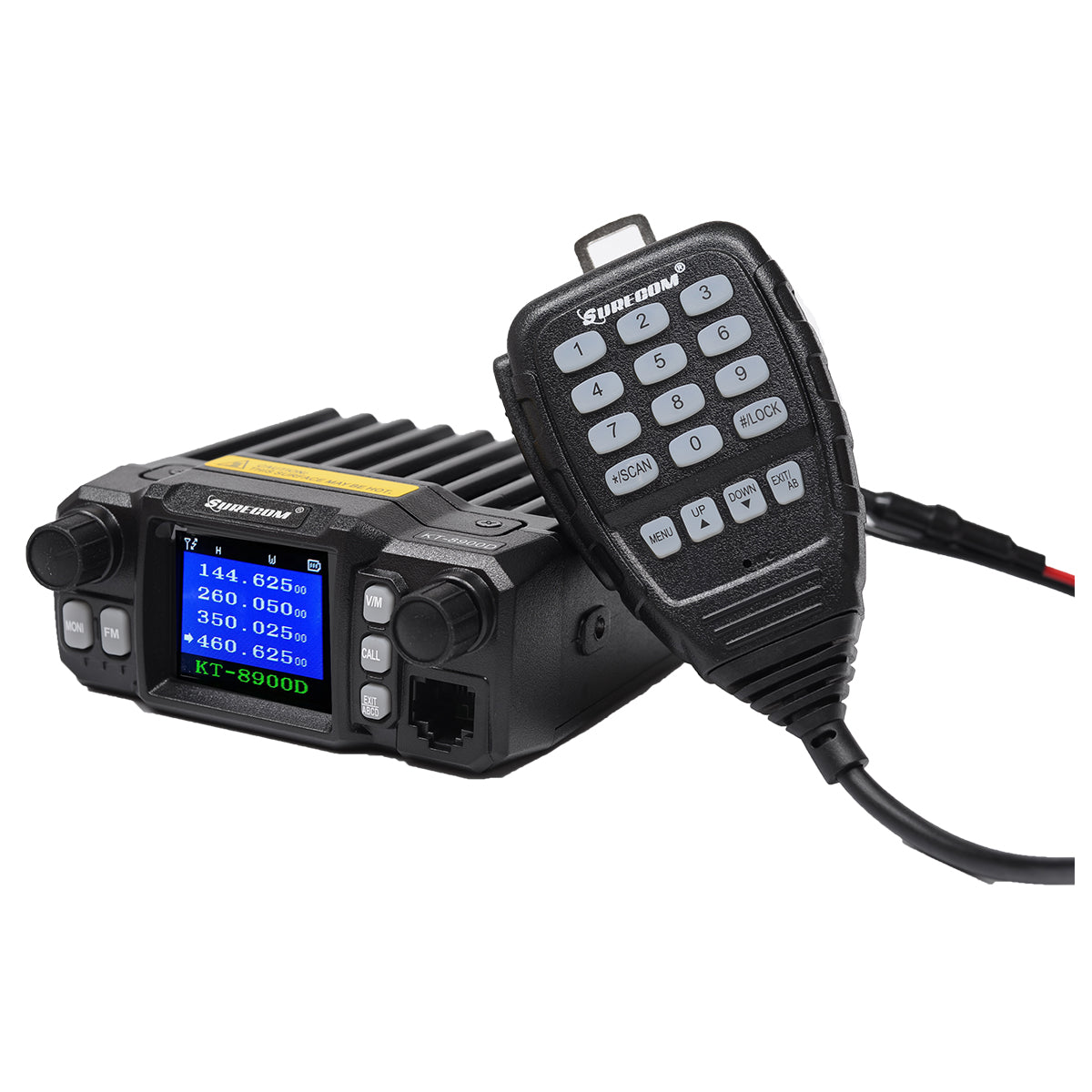

SURECOM KT-8900D mini color screen mobile radio
Secured and trusted checkout with
SURECOM KT-8900D mini color screen mobile radio
General specification
| Frequency Range |
VHF: 136-174MHz / 220-260MHz UHF: 350-390MHz / 400-480MHz |
| Number of channels | 200 |
| Channel spacing | 25KHz、 20K、12.5 |
| Phase lock step step | 2.5KHz、5KHz、6.25 KHz、10 KHz、12.5 KHz、15 KHz、25 KHz |
| Working voltage | 13.8V DC±15% |
| Squelch way | CTCSS、DCS、5Tone、2Tone、DTMF |
| Frequency stability | ±2.5ppm |
| Operat temperature | -20+60℃ |
| Dimension | 98(W)*43(H)*126(D)mm |
| Weight | 448g |
Receive
| Wide Band | Narrow Band | |
| Sensitivity | ≤0.25μν | ≤0.35μν |
| Channel Cholce | ≥70db | ≥60db |
| Intermodulation | ≥65db | ≥60db |
| Spurious Rejection | ≥70db | ≥70db |
| Audio Response | +1~~3db（0.3~3KHz） | +1~~3db（0.3~2.55KHz） |
| Signal to noise radio | ≥45db | ≥40db |
| Audio Distortion | ≤5% | |
| Audio output power | ≥2W@10% | |
Transmit
| Wide Band | Narrow Band | |
| Output Power | 25W/20W（VHF/UHF） | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70db | ≥60db |
| Signal to noise radio | ≥40db | ≥36db |
| Parasitic Harmonic | ≥60db | ≥60db |
| Audio Response | +1~~3db（0.3~3KHz） | +1~~3db（0.3~2.55KHz） |
| Audio Distortion | ≤5% | |
PACKAGE CONTAIN:
- 1 x SURECOM KT-8900D 136-174/220-260/350-390/400-480 MINI COLOR SCREEN MOBILE RADIO
- 1 x Microphone
- 1 x Car Power Cable
- 1 x Fuse
- 1 x Mounting bracket
- 1 x Screw
- 1 x User"s Manual
