Application

Unlock XLock

1. Press the hook downward ↓ and the LED light will turn BLUE
2. Put your registered finger on the sensor and hold there for a second

• If BLUE light flashes, XLock will be unlocked.

If RED light flashes, it indicates that the Sensor failed to scan your finger. Please try again until BLUE light is on.

Add Your First Fingerprint

1. Press the hook downward ↓ and the LED light turns to half RED half BLUE

• XLock is activated and ready for use

2. Once the half RED half BLUE is flashing, please put your finger flatly on the Sensor

• If it successfully scanned your fingerprint, BLUE light will flash for 2 seconds. Then put your finger on the sensor for total 3 times. If all three scans are successful, BLUE light will flash for 4 seconds at last. Your fingerprint is successfully registered!

• However, if RED light flashes when you put your finger on the sensor, it means the lock is not able to scan it. So please try again, until BLUE light flashes. (Just like the above case)

Add Additional Fingerprints

1. Press the hook downward ↓ for 6 seconds
2. The BLUE light will flash rapidly. Then put your registered finger on the sensor.
3. The BLUE light will stay for 2 second (If RED light flashes, please try again.).
4. After 2 second, the light will turn to half RED half BLUE. This is when you can start pressing your new finger onto the sensor for 3 successful times.
5. BLUE light indicates succeed. RED light please scan again.
6. After 3 successful scans, SOLID Blue light will be on for 4 seconds.

Your new finger can unlock XLock now! Press the hook downward again to finish.

Erase Fingerprint Records

1. Press the hook downward ↓ for 6 seconds
2. The BLUE light will flash rapidly. Then put your registered finger on the sensor.
3. The BLUE light will stay for 2 second (If RED light flashes, please try again.).
4. After 2 second, the light will turn to half RED half BLUE. Now please press the hook downward for another 6 seconds.
5. When you see RED light rapidly flashing, touch the sensor with your registered finger again.
6. If BLUE light is on for 2 seconds, all fingerprints are erased successfully.
7. If not, please try again starting from step 1.





   Reset Fingerprint Padlock By Computer

8. Download and install the "Touchlock Tool" App at http://bit.ly/XLOCKapp
9. Then connect the lock to your computer with the given micro-USB cable.
10. Open the app and click on “Unlock by Password” to open XLock.

(The default password is “0000”, please change it to your own four digit password  afterwards)

1. You need to clear all fingerprint records first, please click “Delete Fingerprints”.
2. Click “Yes” if you are sure you want to delete the records.
3. Then enter 4 digit password and click “Confirm”.

• If it is your first time to use the password, in this step you just need to input “0000” since you not yet set your own password.

DO AND DO NOT

1. Do Not attempt to repair, break down, restructure or open it.
2. Do Not put it near fire, heat or under strong sun.
3. Stop using at once when you smell or see some smoke.
4. Do Not put fingerprint sensor near magnetic material.
5. Do Not use when the lock is damaged or the micro USB cable is broken.
6. When this product is left unused, the voltage will fall and you will need to charge it again before using.
7. Do Use a suitable power supply and voltage.

This fingerprint padlock is one of the must-bring gadgets for travels. Check out for more must-bring gadgets for trips at our blog!

This TSA fingerprint padlock has been listed at HK Airlines ToHome magazine. Now at GadgetiCloud, we are offering special discounts for frequent travelers. Grab one now!

Specifications:

Model: XLK-1020

Functional at -10°C to 50°C

Certification: FCC, CE, IP54, VCCi, TSA

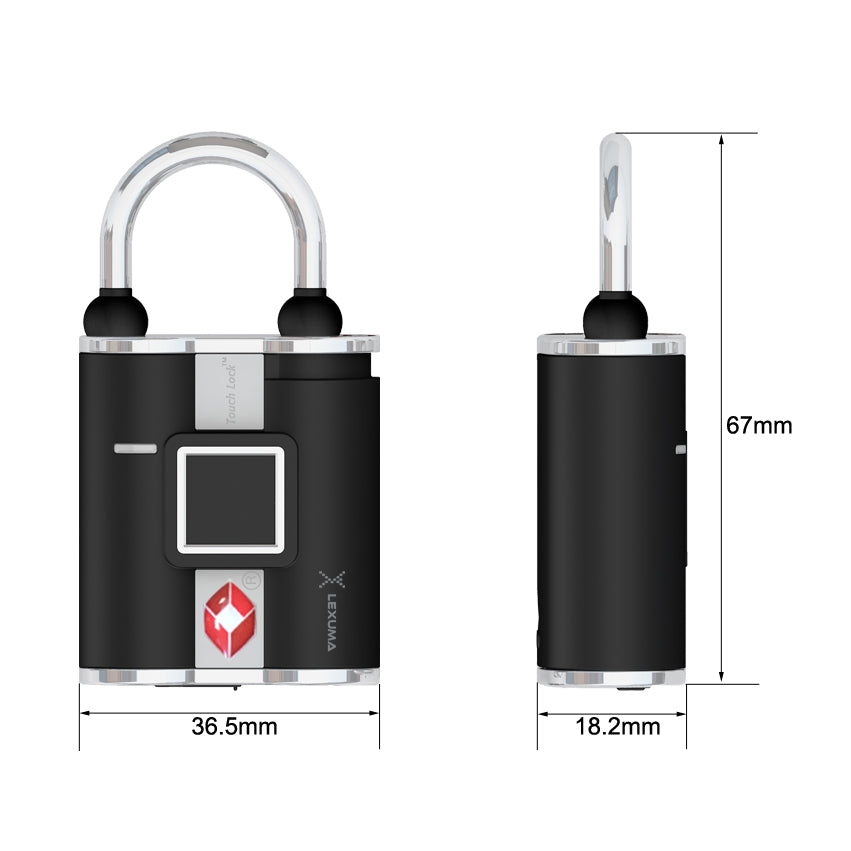

Size: 67 x 36.5 x 18.2mm

Waterproof rubber ring

Package Content:

Fingerprint Padlock
A Micro USB Cable (For Charging of the lock)
A detailed User Manual

Check Out Product FAQs
