(Accessory Shoe Mounting Bracket and Standard Mounting Bracket)
Insta360 ONE R accessories | Mounting Bracket

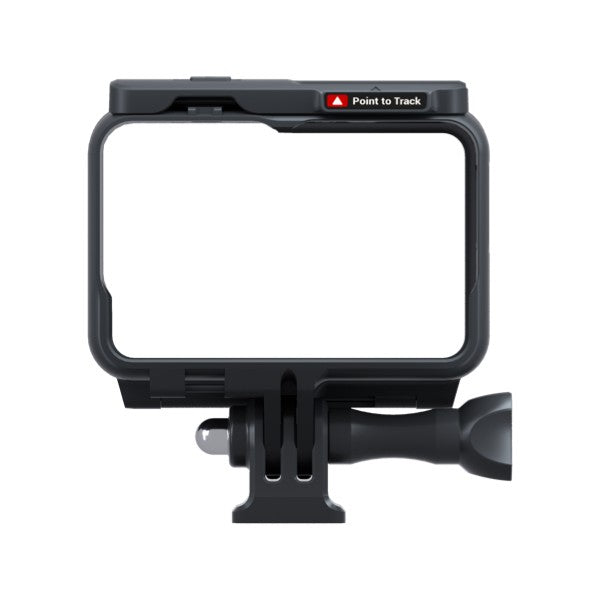

Standard Mounting Bracket

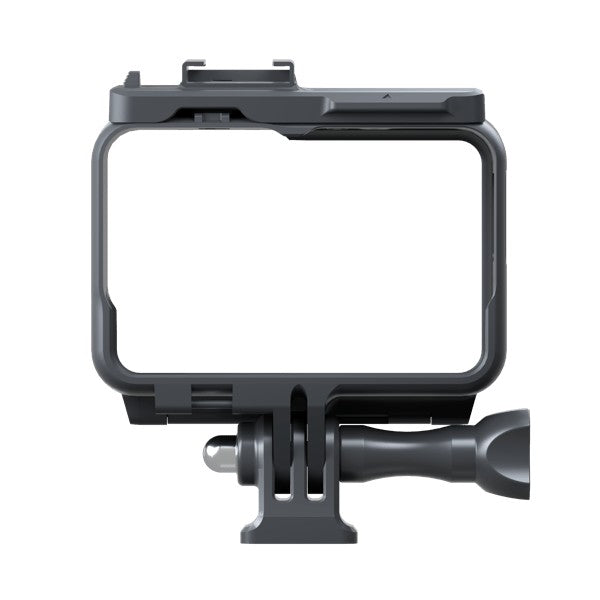

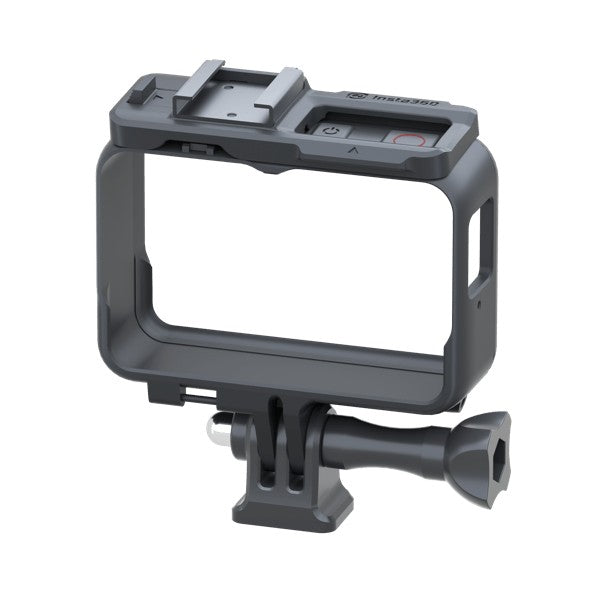

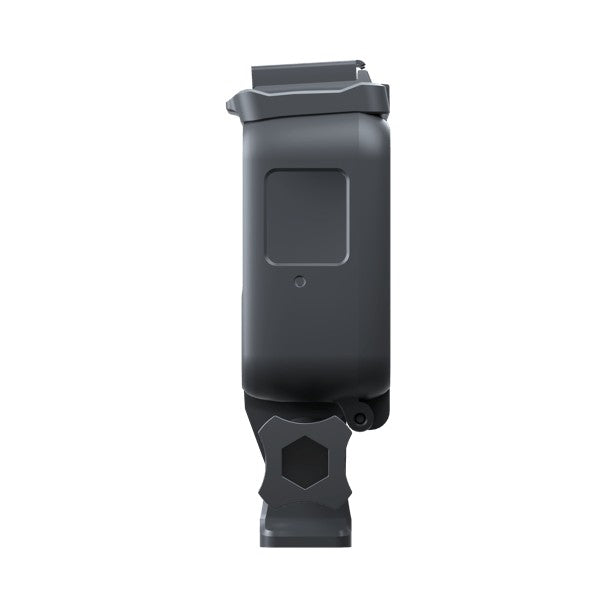

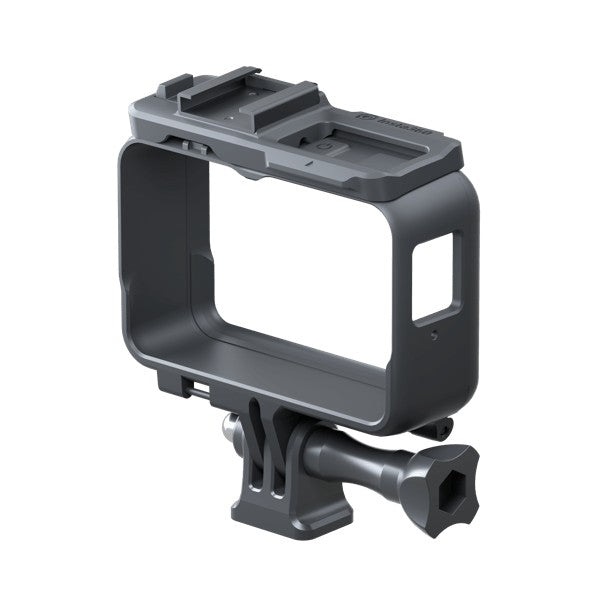

Accessory Shoe Mounting Bracket
Mounting Bracket with cold shoe top mounts to attach external mic or lights.
* The picture is for display only. The mic adapter and external mic are sold separately.
How to use - Standard Mounting Bracket
1. Open the Mounting Bracket
Push the lock buckle of the Mounting Bracket to the right (1), then pull down the buckle (2). Remove the buckle from the hook (3). When the buckle is completely disengaged, open the Mounting Bracket (4).
2. Insert the Camera
Be sure to insert the camera in the correct direction.
*When assembling the 1-inch Wide Angle Mod, remove its protective lens first. Once you've installed the bracket, please re-attach its protective lens.
3. Close the Mounting Bracket
To close the Mounting Bracket, latch the buckle with the hook and push the buckle until it clicks.
4. Attach the 1/4" Adapter
To shoot with the invisible selfie stick, attach the 1/4" invisible selfie stick adapter to the Mounting Bracket.
How to use - Accessory Shoe Mounting Bracket
1. Open the Mounting Bracket
Push the lock buckle of the Accessory Shoe Mounting Bracket to the right (1), then pull down the buckle (2). Remove the buckle from the hook (3). When the buckle is completely disengaged, open the Bracket (4).
2. Insert the camera
Be sure to insert the camera in the correct direction
(The following instruction uses the 4K wide-angle mode as an example)
*Note: When using the Leica mode, remove its lens guard first. Having installed the bracket, please re-install its lens guard.
3. Close the Accessory Shoe Mounting Bracket
To close the Mounting Bracket, latch the buckle with the hook and push the buckle until it clicks (The following instruction uses the 4K Wide Angle Mode as an example).
4. Mount an External Mic or light
You can mount an external mic or external lighting to the Accessory Shoe on top of the mounting bracket.
Note: In non-action environments, the mounted accessories' weight should be within 250g (8.818 oz). In action environments, the accessories' weight should be within 130g (4.585 oz), and its height shouldn't exceed 10 cm (0.328ft).
