The first DJI aircraft to use an infrared sensing system & mechanical shutter (with LCD).
An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps.The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making thePhantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infraredsensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.
CAMERA WITH 1-INCH 20MP SENSOR
The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. A custom engineered lens made up of eight elements is arranged in seven groups, it is the first DJI camera to use a mechanical shutter, eliminating rolling shutter distortion which can occur when taking images of fast moving subjects or when flying at high speed. In effect, it is as powerful as many traditional ground cameras. More powerful video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps, both with a 100Mbps bitrate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for advanced post-production.
5-DIRECTION OF OBSTACLE SENSING
FlightAutonomy is expanded with an additional set of high-resolution stereo vision sensors placed at the rear in addition to the pair placed at the frontas well as infrared sensing systems placed on the left and right sides. This network creates a total of 5-direction of obstacle sensing and 4-direction ofobstacle avoidance, protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.
6-CAMERA NAVIGATION SYSTEM
Three sets of dual vision sensors form a 6-camera navigation system that works constantly to calculate the relative speed and distance between theaircraft and an object. Using this network of forward, rearward and downward vision sensors, the Phantom 4 Pro is able to hover precisely in placeswithout GPS when taking off indoors, or on balconies, or even when flying through windows with minimal pilot control. In the unlikely event that frontand downward sensors are unable to operate, the aircraft can still hover in place using the rear stereo vision system. The Phantom 4 Pro also is ableto fly in complex environments at a flight speed of up to 31mph (50kph) while avoiding obstacles in its path. In Narrow Sensing Mode, the Phantom 4Pro narrows its sensing scope enabling it to see in more detail and fly through small spaces.
INFRARED SENSING SYSTEM
The Phantom 4 Pro is the first DJI aircraft to use an infrared sensing system. Placed on the left, and right sides of the aircraft, these measure the distance between the aircraft and any obstacles using infrared 3D scanning. When in Beginner Mode and Tripod Mode, these sensors have a horizontal field of view of 70° and a vertical field of view of 20°, providing a wide view of the scene to the sides of the Phantom, and a maximum range of 23ft (7m). Traditional ultrasonic sensors only have a detection range of 3-5m and may be confused when affected by propeller vibration. The infrared sensing system is able to sense larger areas and measure the distance between the aircraft, identifying the closest objects accurately while avoiding interference, providing more reliable sensing and protection.

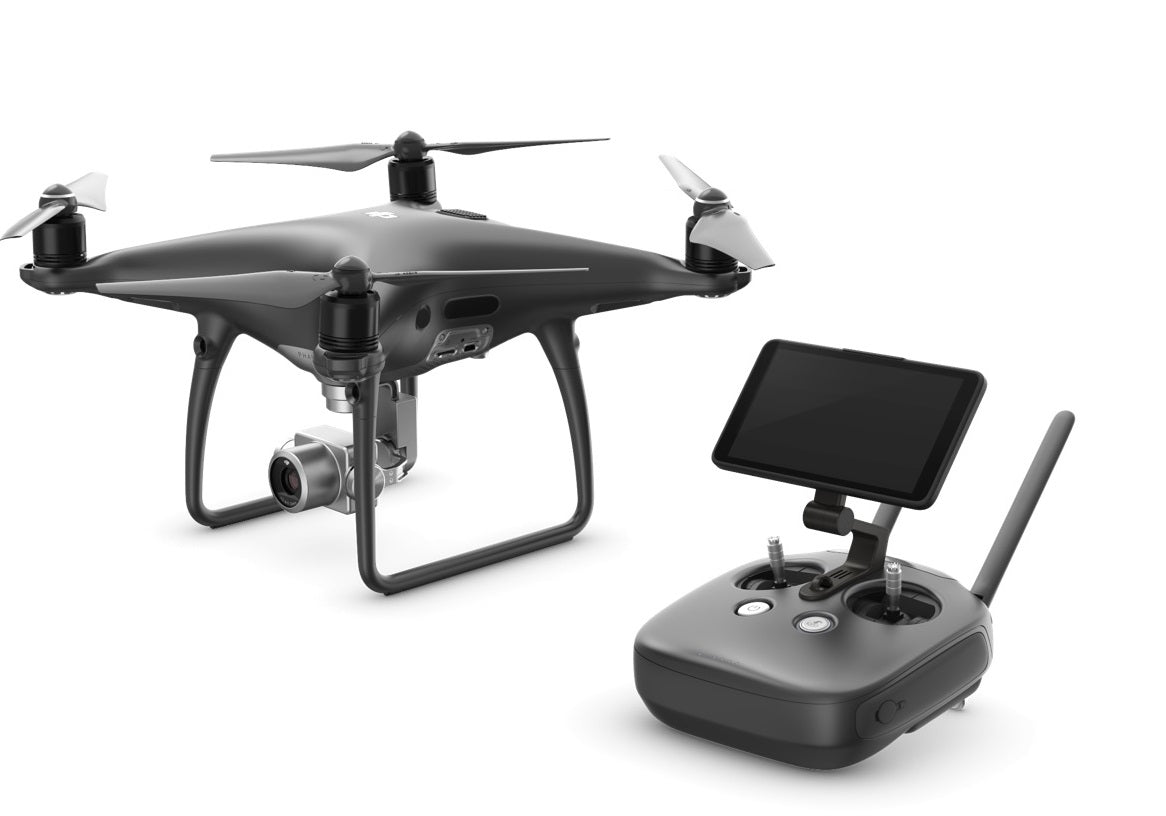

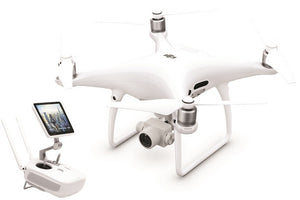

REMOTE CONTROLLER WITH BUILT-IN SCREEN
A 5.5in 1080p screen integrated with the Phantom 4 Pro + offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices. As the DJI GO app is built into the screen, hardware and software can be fully optimized, allowing you to edit and share instantly. A five-hour battery life makes the Phantom 4 Pro + a complete aerial imaging solution. The integrated upgraded Lightbridge HD video transmission system supports dual frequencies for greater interference resistance and a maximum video transmission range of 4.3mi (7km)*.
*Unobstructed, free of interference, when FCC compliant.
All-new DJI Phantom camera with 1-inch 20MP Exmor R CMOS sensor, longer flight time and smarter features.
Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range
32° to 104°F (0° to 40°C)
APP / LIVE VIEW
DJI GO 4
Live View Working Frequency
2.4 GHz ISM, 5.8 GHz ISM
Live View Quality
720P @ 30fps
Phantom 4 Pro: 220 ms (depending on conditions and mobile device) Phantom 4 Pro+：160 - 180 ms
Required Operating Systems
iOS 9.0 or later Android 4.4.0 or later
3-axis (pitch, roll, yaw)
Pitch: -90° to +30°
Max Controllable Angular Speed
Angular Control Accuracy
INFRARED SENSING SYSTEM
Obstacle Sensory Range
0.6 - 23 feet (0.2 - 7 m)
70° (Horizontal), ±10° (Vertical)
Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
2.400 - 2.483 GHz and 5.725 - 5.825 GHz
Max Transmission Distance
2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) 5.725 - 5.825 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 1.2 mi (2 km) SRRC: 3.1 mi (5 km)
